Wifi Bluetooth Mini Controller Mono Color CTL-AA
Wifi Bluetooth Mini Controller Mono Color CTL-AA

Wifi Bluetooth Mini Controller Mono Color CTL-AA

Customization:Fully supported

Brief Info

  • Control by Smart Life or Tuya App
  • Voice control via Amazon Alexa or Google Assistant
  • DC5~24V / 3.5A max
  • Small Size
  • Control Mono Color
  • Static Color, Dimming, Flash and Breath Effect
  • CE, EMC, LVD, RoHS, REACH, UKCA
  • share

Options

Item NOInput WireOutput WireAccessories

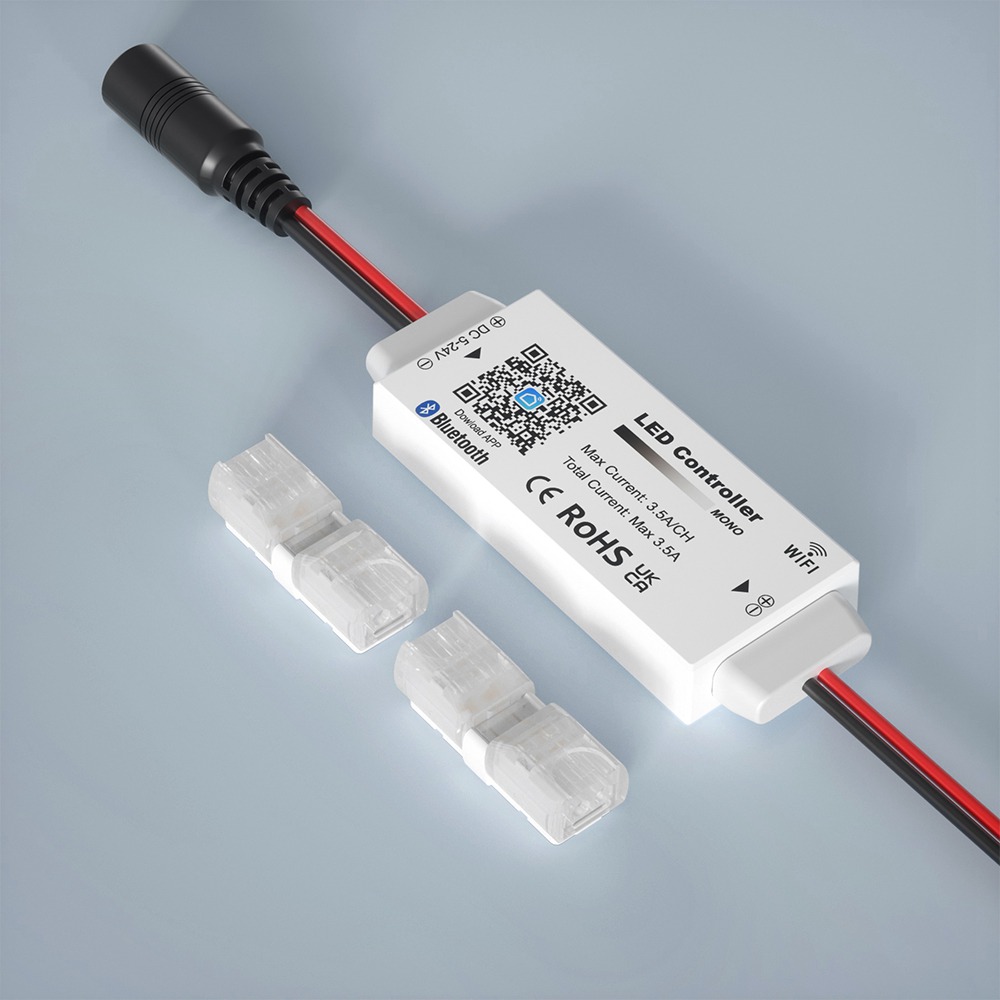

CTL-AAW-MONO-34DC5521 Female InputOpen Wire2 PCS of WJX-CC2-2022
CTL-AAW-MONO-34-01Open WireOpen Wire2 PCS of WJX-CC2-2022
CTL-AAW-MONO-34-02Open WireOpen WireNo Accessories

Technical Data

Item NO.Applicable for all item NO.
Output VoltageDC5~24V
Max Current3.5A (20AWG Wire)
Max Power5V-17.5Watt; 12V-42Watt; 24V-84Watt
Output Channel NO.1 Channel
Applicable Light ColorMono Color
Grey Level255
Brightness Dimmable Range10%~100%
Bluetooth VersionBluetooth 5.2
WIFI Frequency2.4GHz
PWM Frequency20KHz
Input Wire ColorBlack-Red
Output Wire ColorBlack-Red
Wire Length150mm
Wire Gauge20AWG / 0.52 mm²
Electrical ProtectionRevert Protection, Over Load Protection

User Manual

Download User Manual

Package Options

Normal BagBoxHanging HeadFace Seal BlisterClamshell Blister
White BoxWhite BoxHanging Head bag package for led strip connectorFace Seal BlisterClamshell Blister
